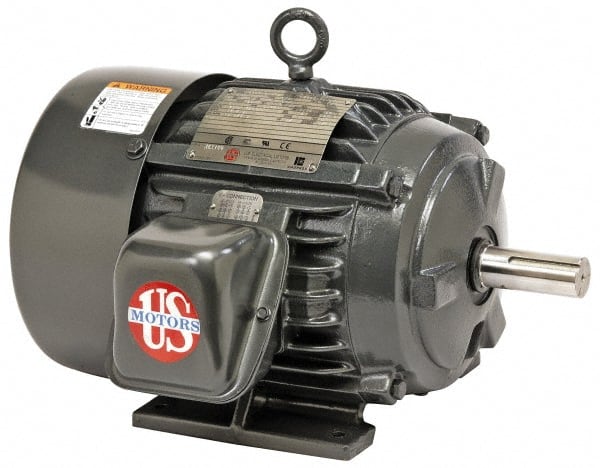

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 1,765 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 3.2 Full Load Amps, F Class Insulation, Reversible
Item #: 86345451
Brand: US Motors
Model #: HW3E2G2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1765 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 3.2 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 14.5300 |
| Full Load Efficiency Rating | 87.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
