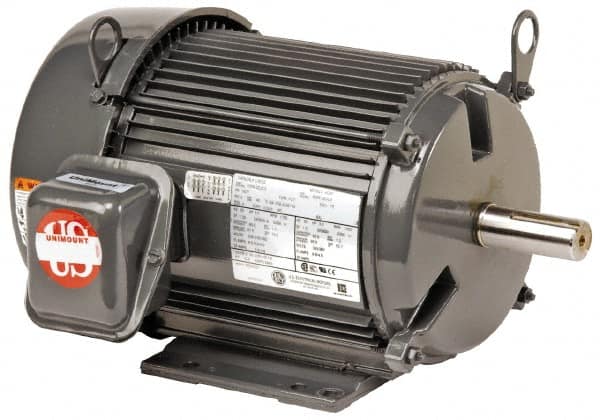

US Motors - 1 hp, TEFC Enclosure, No Thermal Protection, 1,765 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 145 Frame, Rigid Mount, 2 Speed, Ball Bearings, 1.9 Full Load Amps, F Class Insulation, Reversible
Item #: 86347150
Brand: US Motors
Model #: U1D10C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1765 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Rigid |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 1.9 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 13.7500 |
| Full Load Efficiency Rating | 77 |
| Service Factor Rating | 1.25 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
