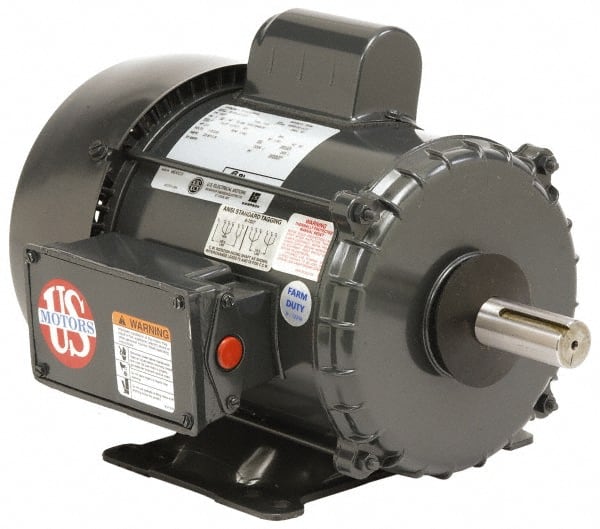

US Motors - 10 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 26.3/13.2 Full Load Amps, F Class Insulation, Reversible
Item #: 86352465
Brand: US Motors
Model #: UV10S2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 10 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1755 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 215 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 26.3/13.2 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 20.1300 |
| Full Load Efficiency Rating | 87.5 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
