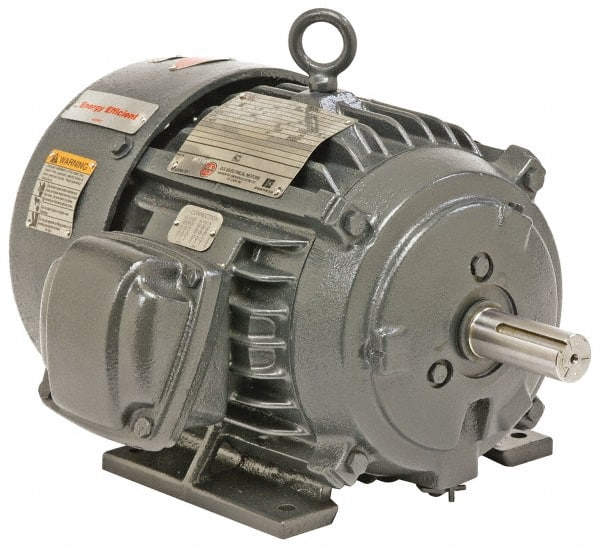

US Motors - 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 1,180 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.1/9.6 Full Load Amps, F Class Insulation, Reversible
Item #: 86354073
Brand: US Motors
Model #: X7E3B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 7-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1180 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 254 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 19.1/9.6 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 23.5900 |
| Full Load Efficiency Rating | 89.5 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
