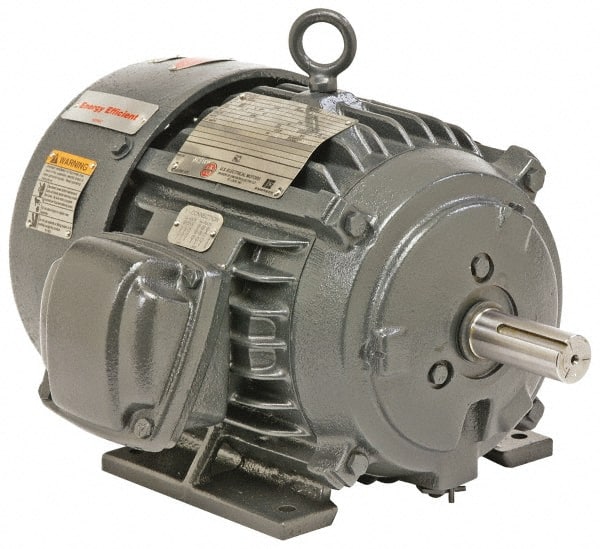

US Motors - 40 hp, TEFC Enclosure, No Thermal Protection, 3,545 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 324 Frame, Rigid Mount, 1 Speed, Ball Bearings, 93/47 Full Load Amps, F Class Insulation, Reversible
Item #: 86354461
Brand: US Motors
Model #: YC40E1BS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 40 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3545 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 324 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 93/47 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 28.1900 |
| Full Load Efficiency Rating | 91.7 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
