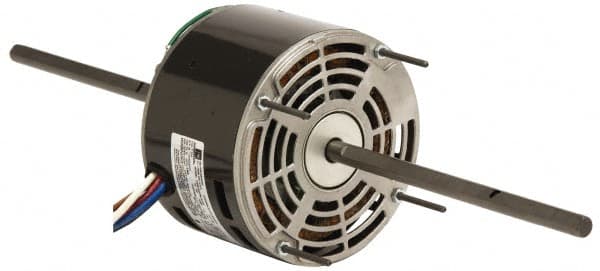

US Motors - 1/15 hp, ODP Enclosure, Auto Thermal Protection, 1,100 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 42 Frame, Resilient Base Mount, 3 Speed, Sleeve Bearings, 0.80 Full Load Amps, A Class Insulation, CW Lead End
Item #: 86354743
Brand: US Motors
Model #: 1090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/15 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1100 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 42 |
| Mount Type | Resilient Base |
| Number of Speeds | 3 |
| Bearing Type | Sleeve |
| Full Load Amperage | 0.80 |
| Insulation Class | A |
| Full Load Efficiency Rating | 24.70 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
