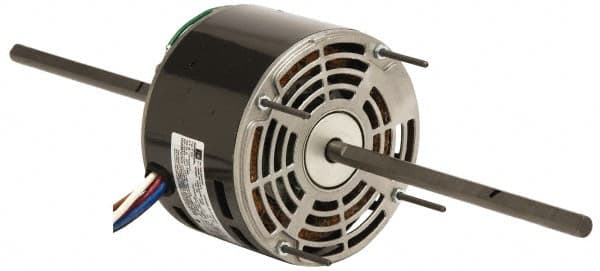

US Motors - 1/5 hp, ODP Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230 Volt, 50 Hz, Industrial Electric AC/DC Motor - Size 42 Frame, Hub Mount, 1 Speed, Sleeve Bearings, 1.3 Full Load Amps, B Class Insulation, CW Lead End
Item #: 86354750
Brand: US Motors
Model #: 1124
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/5 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230 |
| Frequency Hz | 50 |
| Frame Size | 42 |
| Mount Type | Hub |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 1.3 |
| Insulation Class | B |
| Full Load Efficiency Rating | 58.90 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
