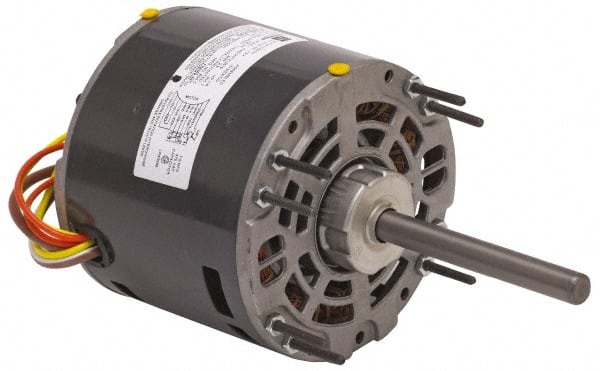

US Motors - 1/6 hp, ODP Enclosure, No Thermal Protection, 850 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - C-Face Mount, 1 Speed, Ball Bearings, 5.6 Full Load Amps, B Class Insulation, CW Drive End Rev
Item #: 86354859
Brand: US Motors
Model #: 1206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/6 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 850 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 5.6 |
| Insulation Class | B |
| Full Load Efficiency Rating | 51.80 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.35 |
| Motor Rotation | CW Drive End Rev |
| PSC Code | 6105 |
