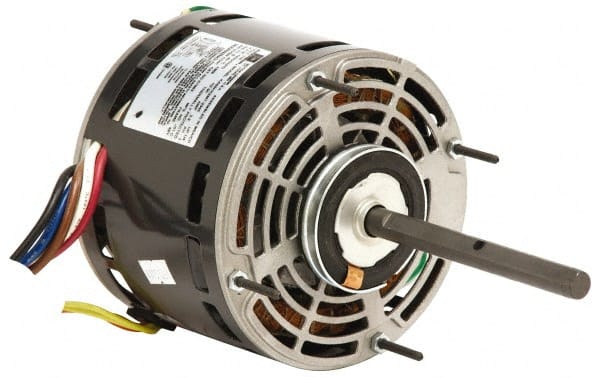

US Motors - 1/6 hp, ODP Enclosure, Auto Thermal Protection, 1,050 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 42 Frame, Hub Mount, 1 Speed, SAB Bearings, 3.0 Full Load Amps, A Class Insulation, CW Drive End
Item #: 86355138
Brand: US Motors
Model #: 1631
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1050 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 42 |
| Mount Type | Hub |
| Number of Speeds | 1 |
| Bearing Type | SAB |
| Full Load Amperage | 3.0 |
| Insulation Class | A |
| Full Load Efficiency Rating | 0.00 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Drive End |
| PSC Code | 6105 |
