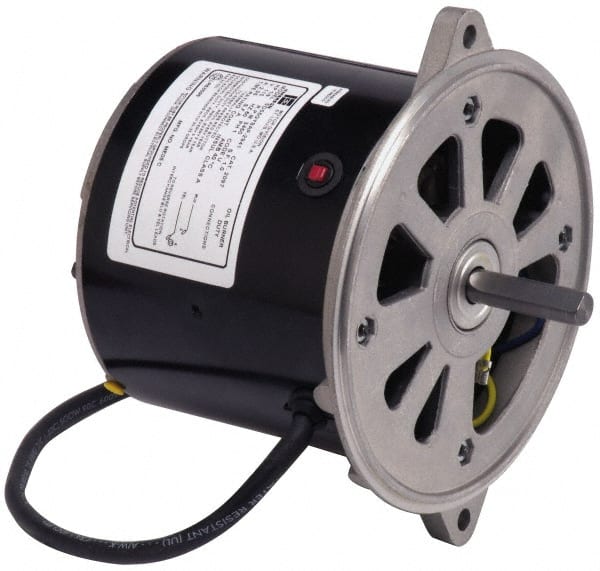

US Motors - 1/8 hp, ODP Enclosure, Manual Thermal Protection, 3,450 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Face Mount, 1 Speed, Sleeve Bearings, 2.4 Full Load Amps, A Class Insulation, Reversible
Item #: 86355294
Brand: US Motors
Model #: 1981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/8 |
| Thermal Protection Rating | Manual |
| Name Plate RPMs | 3450 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Face |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 2.4 |
| Insulation Class | A |
| Full Load Efficiency Rating | 43.70 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
