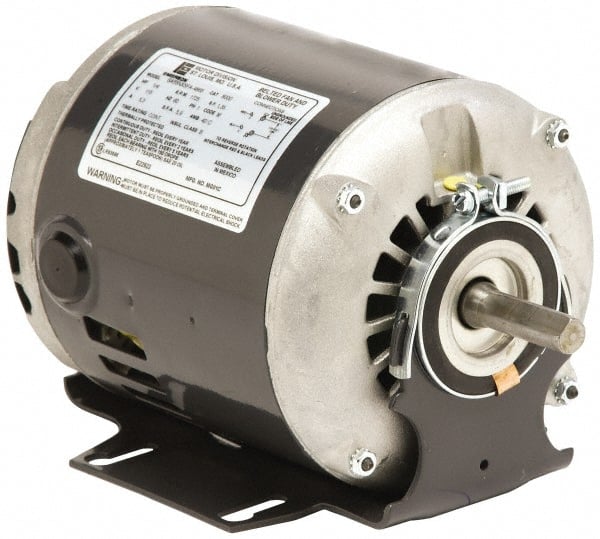

US Motors - 1/3 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Resilient Mount, 1 Speed, Ball Bearings, 5.4 Full Load Amps, A Class Insulation, CW Drive End Rev
Item #: 86355492
Brand: US Motors
Model #: 2888
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Resilient |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 5.4 |
| Insulation Class | A |
| Shaft Diameter x Length (Inch) | 1/2 x 1-1/2 |
| Full Load Efficiency Rating | 61.70 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.35 |
| Motor Rotation | CW Drive End Rev |
| PSC Code | 6105 |
