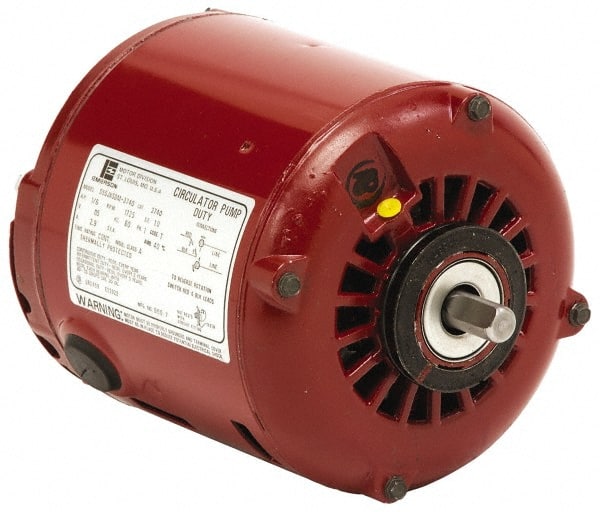

US Motors - 1/12 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Bracket Mount, 1 Speed, Sleeve Bearings, 2.5 Full Load Amps, B Class Insulation, CW Shaft End
Item #: 86355674
Brand: US Motors
Model #: 3255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/12 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Bracket |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 2.5 |
| Insulation Class | B |
| Full Load Efficiency Rating | 40.50 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.75 |
| Motor Rotation | CW Shaft End |
| PSC Code | 6105 |
