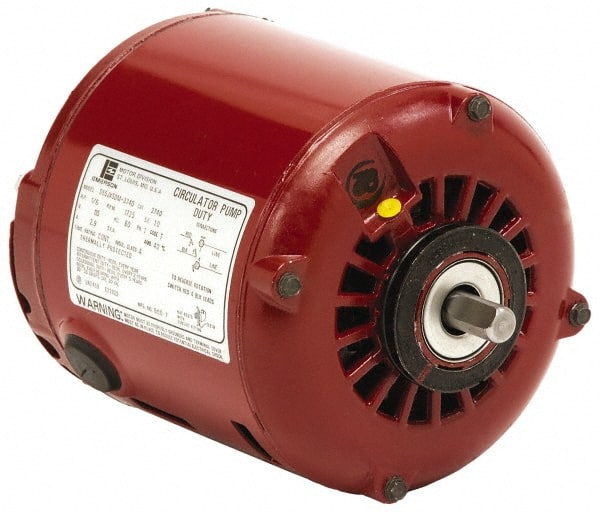

US Motors - 3/4 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 115/208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Bracket Mount, 1 Speed, SAB/Sleeve Bearings, 8.2/4.7-4.2 Full Load Amps, B Class Insulation, Reversible
Item #: 86355732
Brand: US Motors
Model #: 3261
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Bracket |
| Number of Speeds | 1 |
| Bearing Type | SAB/Sleeve |
| Full Load Amperage | 8.2/4.7-4.2 |
| Insulation Class | B |
| Full Load Efficiency Rating | 75.50 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.50 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
