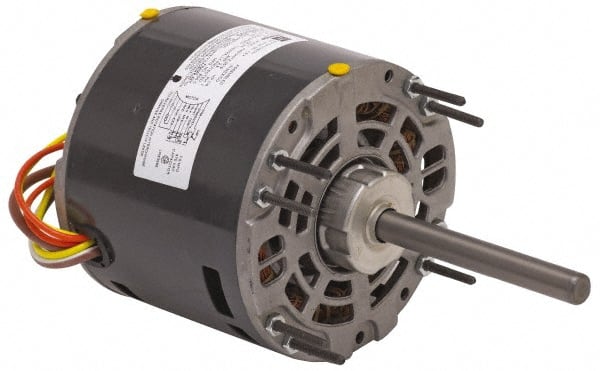

US Motors - 1/7 hp, ODP Enclosure, 3,450 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, M-Flange Mount, 1 Speed, Ball Bearings, 1.7 Full Load Amps, B Class Insulation, CCW Shaft End
Item #: 86355799
Brand: US Motors
Model #: 3274
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/7 |
| Name Plate RPMs | 3450 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | M-Flange |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 1.7 |
| Insulation Class | B |
| Full Load Efficiency Rating | 62.80 |
| Motor Run Capacitor Micro Farid | 16.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CCW Shaft End |
| PSC Code | 6105 |
