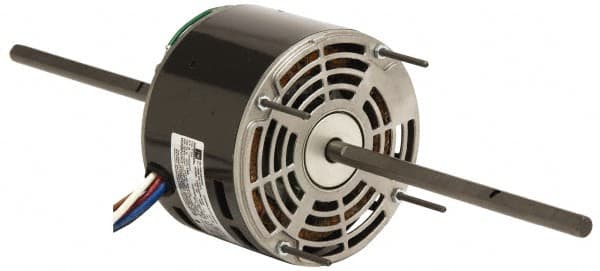

US Motors - 1/10 hp, ODP Enclosure, Auto Thermal Protection, 1,550 RPM, 220 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Resilient Base Mount, 3 Speed, Sleeve Bearings, 0.85 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 86355815
Brand: US Motors
Model #: 3300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/10 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1550 |
| Voltage | 220 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Resilient Base |
| Number of Speeds | 3 |
| Bearing Type | Sleeve |
| Full Load Amperage | 0.85 |
| Insulation Class | B |
| Full Load Efficiency Rating | 48.30 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
