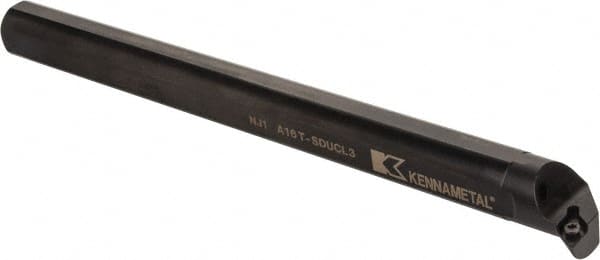

Kennametal - 33.02mm Min Bore Diam, 12" OAL, 1" Shank Diam, A-SDUC Indexable Boring Bar - DC.. Insert, Screw Holding Method
Item #: 86462090
Brand: Kennametal
Model #: 1328629
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 33.02 |
| Minimum Bore Diameter (Decimal Inch) | 1.3000 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -3 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DC.. 32.52 |
| Toolholder Material | Steel |
