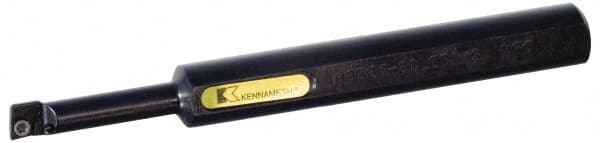

Kennametal - 5.9mm Min Bore Diam, 150mm OAL, 5mm Shank Diam, E-SCLD Indexable Boring Bar - CD.. Insert, Screw Holding Method
Item #: 86462629
Brand: Kennametal
Model #: 1930357
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 5.90 |
| Minimum Bore Diameter (Decimal Inch) | 0.2323 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 5.00 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 3.00 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.00 |
| Complete Insert Compatibility | CD.. S4T002 |
| Toolholder Material | Carbide |
