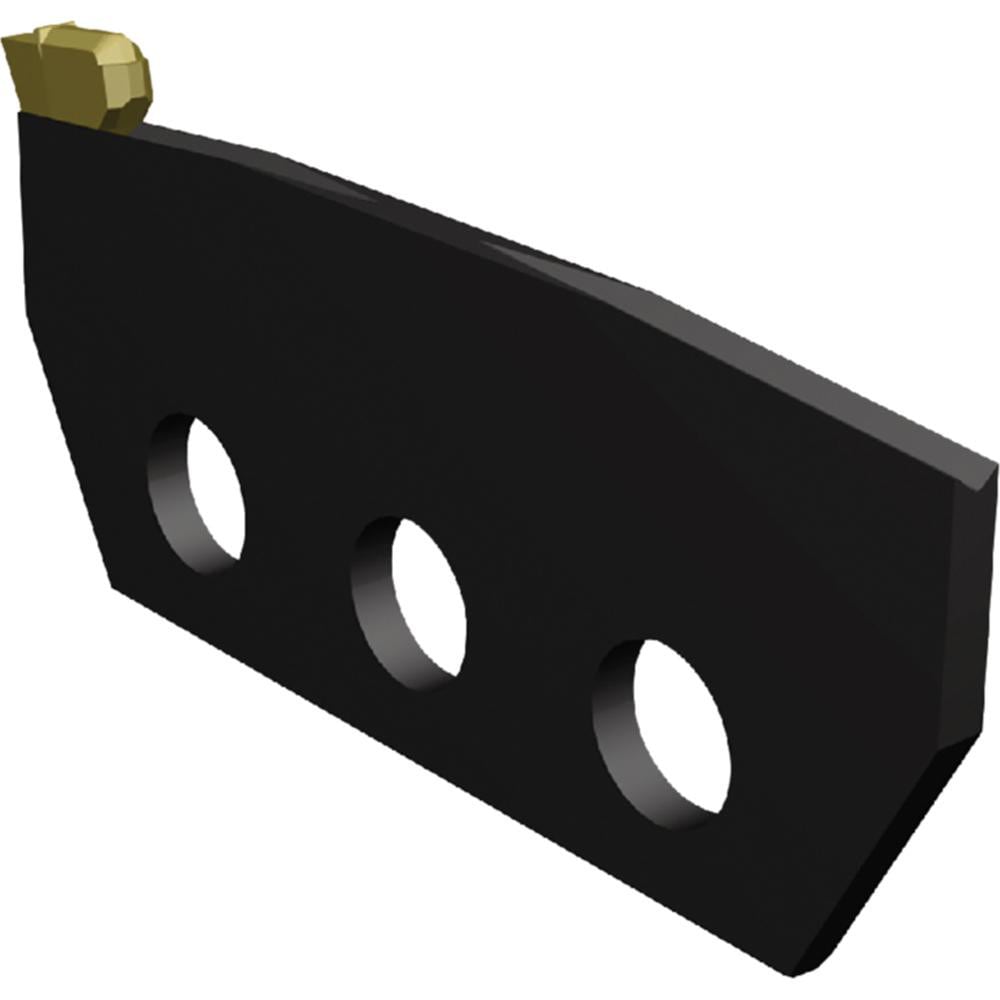

Brand: Widia / Part #: 6788445
Item #: 83082511
Brand: Widia
Model #: 6788445
Product Specifications
| Cutting Direction | Neutral |
| Minimum Groove Width | 2.00 mm |
| Blade Style | Modular |
| Blade Height (mm) | 25.40 |
| Blade Width (mm) | 2.00 |
| Maximum Depth of Cut (Inch) | 1-1/8 |
| Maximum Depth of Cut (Decimal Inch) | 1.1250 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.5000 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5000 |
| Insert Holding Method | Wedge |
| Maximum Insert Width (mm) | 2.00 |
| Compatible Insert Style | WG; WR; WC |
| Compatible Insert Size Code | 2 |
| Series | WGCMSU-B |
| Cutting Tool Application | Grooving; Cut-Off |
| Single Or Double End | Single |
| Blade Material | Steel |
