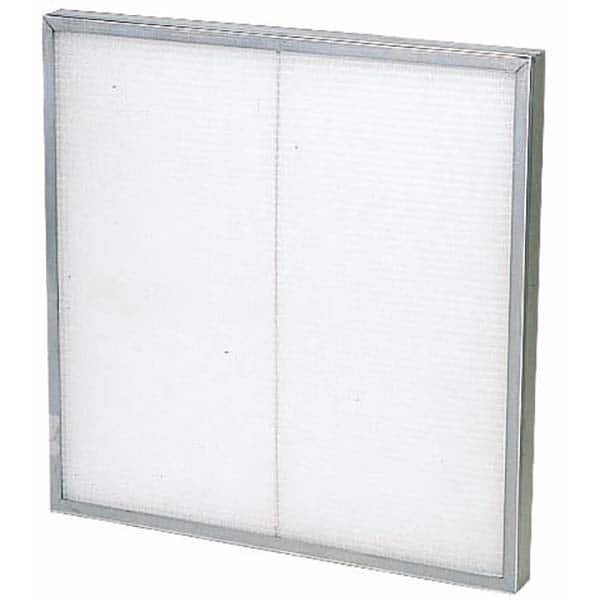

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Washable Nominal Height (Inch): 16
Item #: 14272009
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Washable ; Nominal Height (Inch): 16 ; Nominal Width (Inch): 25 ; Nominal Depth (Inch): 2 ; MERV Rating: 5 ; Media Material: Polypropylene
| Filter Type | Washable |
| Nominal Height (Inch) | 16 |
| Nominal Width (Inch) | 25 |
| Nominal Depth (Inch) | 2 |
| MERV Rating | |
| Media Material | Polypropylene |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 15.500 |
| Actual Width (Decimal Inch) | 24.500 |
| Actual Depth (Inch) | 1.875 |
| Maximum Air Flow (FPM) | 300 |
| CFM | 1389 |
| Initial Resistance at FPM (Inches w.g.) | 0.27 (at 300 FPM) |
| Final Resistance at FPM (Inches w.g.) | .5 |
| Maximum Temperature (F) | 250.000 |
| Frame Material | Steel |
