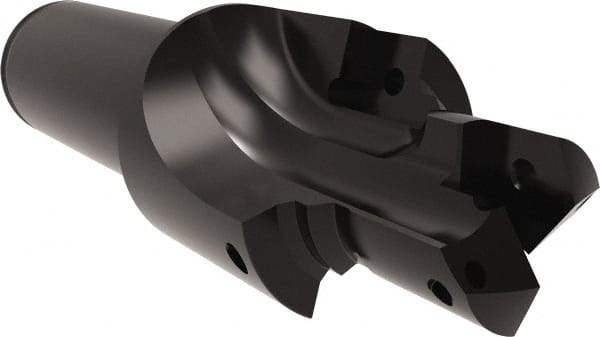

Allied Machine and Engineering - AND10050, MS 33649, SAE AS5202 Standard, 7/8-14" Thread, 10 Tube Dash Number, 60° Porting Angle, 0.896" Pilot Diam, 1" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 4.571" Overall Length
Item #: 86561404
Brand: Allied Machine and Engineering
Model #: AS5202-101-100F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | AND10050; MS 33649; SAE AS5202 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 7/8-14 |
| Tube Dash Number | 10 |
| Pilot Diameter (Decimal Inch) | 0.8960 |
| Spotface Diameter (Decimal Inch) | 1.3540 |
| Pilot Length (Decimal Inch) | 0.1070 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | AS5202-10-C5A |
| Porting Diameter (Decimal Inch) | 1.0020 |
| Overall Length (Decimal Inch) | 4.5710 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 60 |
| Head Length (Decimal Inch) | 2.2900 |
| Shank Length (Decimal Inch) | 2.2810 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1890 |
| Pre-Drill Size (Decimal Inch) | 0.8070 |
| Series | AccuPort 432 |
