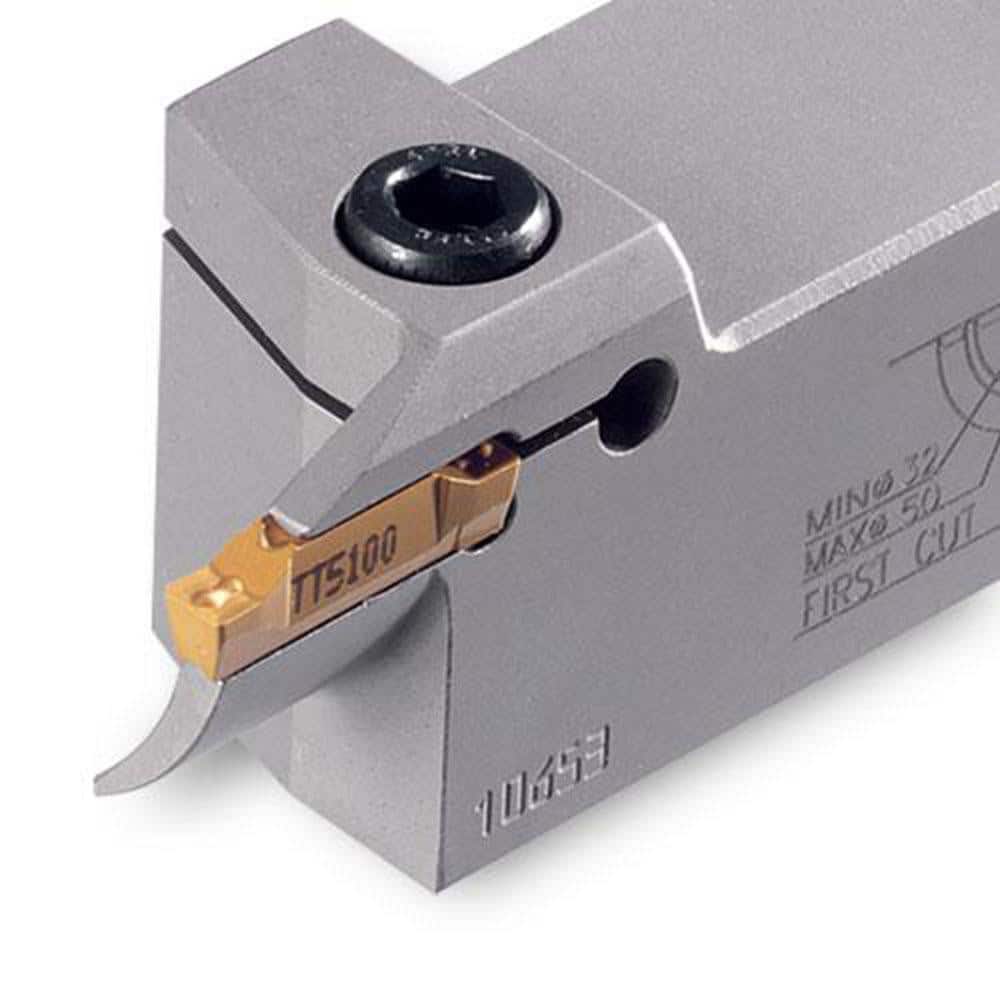

Indexable Grooving Toolholder: TTFR25.4-60-6, 0.1970″ Max Groove Width 0.7900″ Max Depth, Uses TD 6 & TS 6 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 86606407
Brand: Ingersoll Cutting Tools
Model #: 2830054
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 6 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | TTFR |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 6; TS 6 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTFR/L |
| Shank Length (Decimal Inch) | 4.5400 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 3.3500 |
| Maximum Overhang (Inch) | 3.3500 |
| Minimum Hole Diameter (Decimal Inch) | 1.8900 |
| Head Length (Decimal Inch) | 1.4600 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
