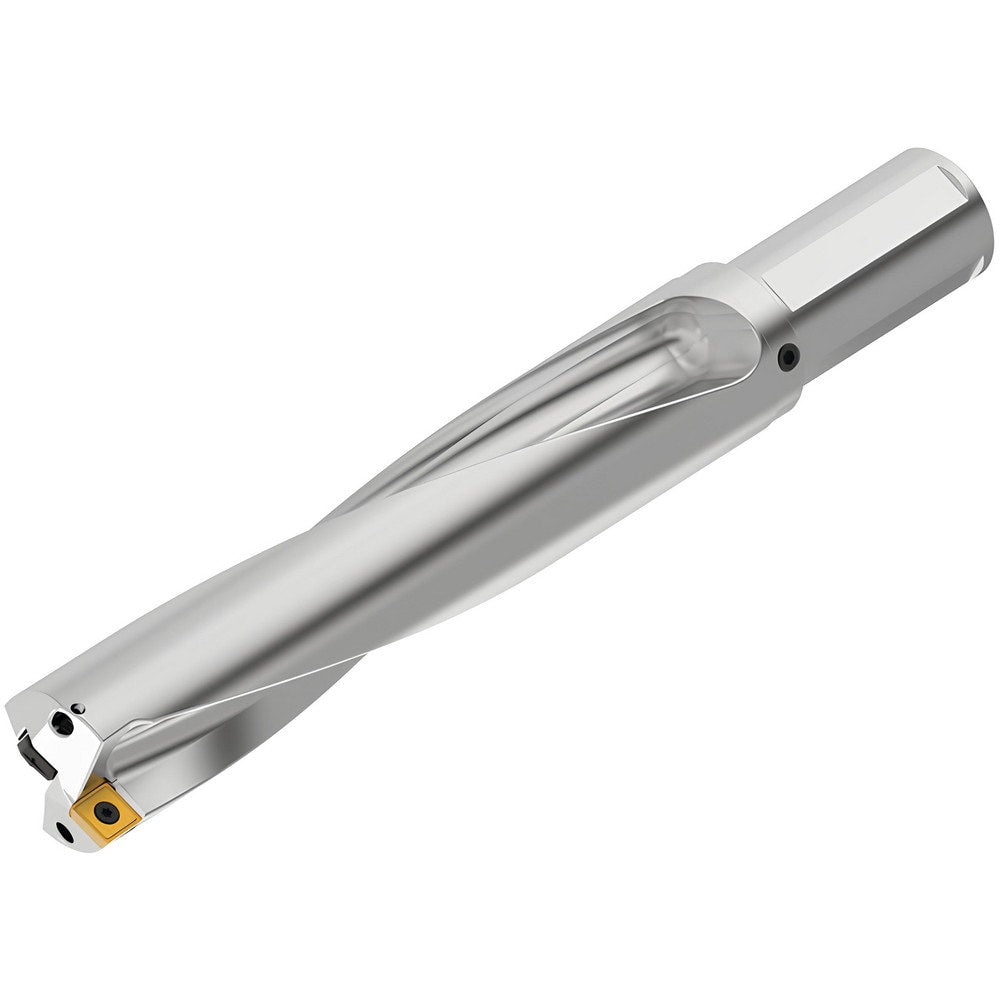

Indexable Insert Drill: DFPR2125R5SSF200, 54.97 mm Max Dia, 269.88 mm Max Depth, 5xD, 50.80 mm Shank Dia
Item #: 04793600
Brand: Kennametal
Model #: 7031359
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 54.97 |
| Maximum Drill Diameter (Decimal Inch) | 2.1640 |
| Maximum Drill Depth (Inch) | 10-5/8 |
| Maximum Drill Depth (Decimal Inch) | 10.6250 |
| Maximum Drill Depth (mm) | 269.88 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (mm) | 50.80 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 170508; 150508 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 15.8450 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 10.6250 |
| Flute Length (mm) | 274.88 |
| Body Length | 402.48 |
| Body Length (Decimal Inch) | 11.8450 |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (mm) | 101.60 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.6810x0.2050; 0.6240x0.2050 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR170508__I; DFPR150508__O |
| Collar Diameter (Decimal Inch) | 2.0693 |
| Collar Diameter (mm) | 52.56 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M5-0.8x13T20 |
| Coolant Through | Yes |
