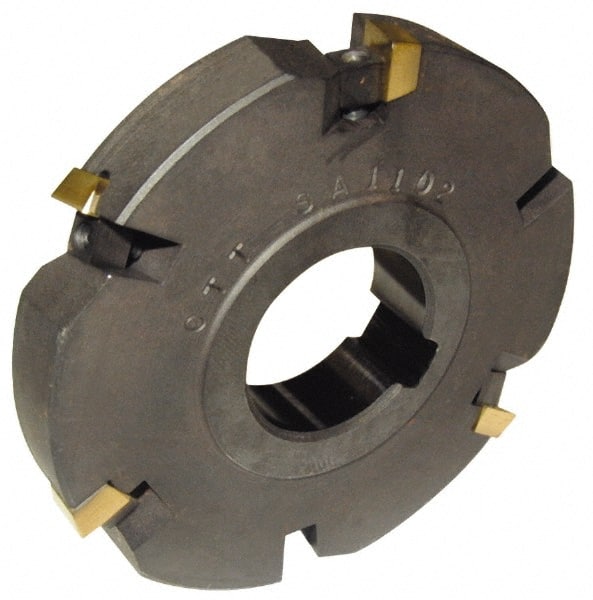

Cutting Tool Technologies - Arbor Hole Connection, 5/16" Cutting Width, 0.53" Depth of Cut, 3" Cutter Diam, 1-1/4" Hole Diam, 4 Tooth Indexable Slotting Cutter - DASC Toolholder, 1215 Insert, Neutral Cutting Direction
Item #: 86802824
Brand: Cutting Tool Technologies
Model #: DASC-040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3125 |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.5300 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 4 |
| Toolholder Style | DASC |
| Series | DASC |
| Insert Style | 1215 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Inch) | 5/16 |
| Minimum Cutting Width (Decimal Inch) | 0.3125 |
| Maximum Cutting Width (Decimal Inch) | 0.3130 |
| Hub Diameter (Decimal Inch) | 1.8750 |
| Hub Diameter (Inch) | 1-7/8 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 1.8800 |
| Complete Insert Compatibility1 | 1215-007; 1215-015; 1215-030; 1215-060 |
