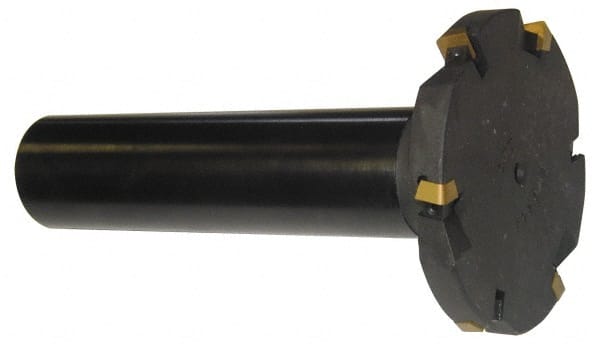

Cutting Tool Technologies - Shank Connection, 3/4" Cutting Width, 1.37" Depth of Cut, 4" Cutter Diam, 5 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, DSSC Toolholder, 1500 Insert
Item #: 86821055
Brand: Cutting Tool Technologies
Model #: DSSC-190
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.7500 |
| Cutting Width (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 1.3700 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 5 |
| Toolholder Style | DSSC |
| Series | DSSC |
| Insert Style | 1500 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Inch) | 3/4 |
| Minimum Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Cutting Width (Decimal Inch) | 0.7500 |
| Radius | No |
| Rake | Positive |
| Shank Length (Decimal Inch) | 5.2500 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | 1500-015; 1500-030; 1500-060; 1500-125 |
