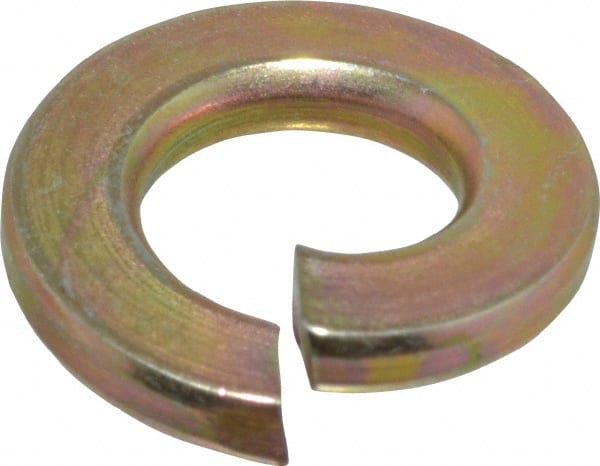

Value Collection - 1/4", 0.062" Thick Split Lock Washer - Grade 8 Alloy Steel, Zinc-Plated Finish, 0.252" Min ID, 0.26" Max ID, 0.377" Min OD, 0.487" Max OD
Item #: 86853207
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1/4 |
| Material | Alloy Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Zinc-Plated |
| Thickness (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 0.2520 |
| Maximum Inside Diameter (Decimal Inch) | 0.2600 |
| Minimum Outside Diameter (Decimal Inch) | 0.3770 |
| Maximum Outside Diameter (Decimal Inch) | 0.4870 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.1090 |
