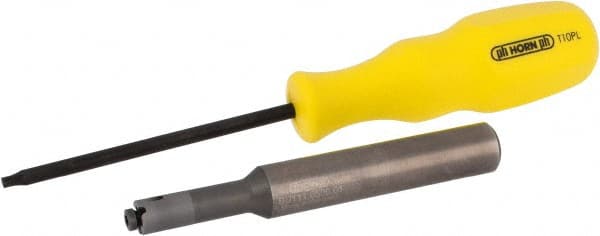

HORN - Internal, Neutral Cut, BU111, 0.091" Max Depth of Cut, 1/8" Groove Width, Indexable Grooving Toolholder - 1/2" Shank Width, 3.74" OAL, Through Coolant
Item #: 86969045
Brand: HORN
Model #: BU111050001
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0910 |
| Minimum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 3.7400 |
| Toolholder Style | BU111 |
| Insert Compatibility | U111 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Maximum Hole Depth (Decimal Inch) | 1.1420 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4210 |
| Center to Cutting Edge (Decimal Inch) | 0.2640 |
| Head Height (Decimal Inch) | 0.3150 |
| Toolholder Material | Carbide (Shank) |
