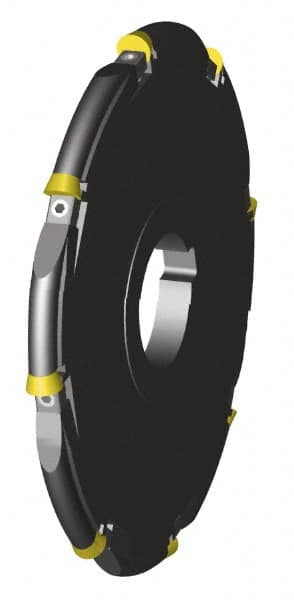

Cutting Tool Technologies - Arbor Hole Connection, 5/32" Cutting Width, 0.72" Depth of Cut, 3" Cutter Diam, 1" Hole Diam, Indexable Slotting Cutter - RA Toolholder, RDC(1.25)(1.5) Insert, Right Hand Cutting Direction
Item #: 86975612
Brand: Cutting Tool Technologies
Model #: RA-320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1563 |
| Cutting Width (Inch) | 5/32 |
| Maximum Depth of Cut (Decimal Inch) | 0.7200 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | RA |
| Series | RA |
| Insert Style | RDC(1.25)(1.5) |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Radius | Yes |
| Cutting Radius (Inch) | 5/64 |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 1.5000 |
