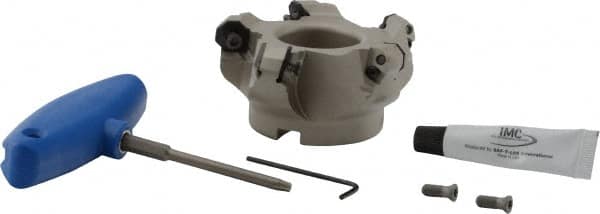

Iscar - 3" Cut Diam, 1" Arbor Hole, 0.087 (FF OFMW), 0.18 (OF...), 0.39 (RF...)" Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill
Item #: 86979739
Brand: Iscar
Model #: 3103252
Product Specifications
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 42 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | OFCR/OFCT-AEN/AETN; OFCT/OFCR-RW/AER; OMFT 07; OMFW-AETN; OMFW-FF; RFMT 1905-76; RFMW 1905 |
| Series | HOF |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 (FF OFMW); 0.1800 (OF...); 0.3900 (RF...) |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 3.4900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | FF OFMW; OF...; RF... |
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.4900 |
