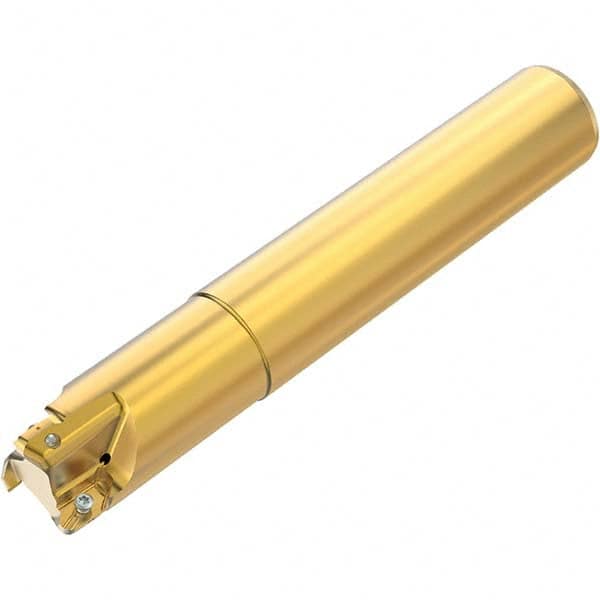

Seco - Indexable Copy End Mills Cutting Diameter (mm): 25 Cutting Diameter (Decimal Inch): 0.9843
Item #: 18989582
Brand: Seco
Model #: 03245366
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 25 ; Cutting Diameter (Decimal Inch): 0.9843 ; Maximum Depth of Cut (mm): 25.00 ; Shank Type: Straight ; Shank Diameter (mm): 25.00 ; Number of Cutter Inserts: 3
| Cutting Diameter (mm) | 25 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | XPKX08 |
| Toolholder Style | R217.97 |
| Series | R217.97 |
| Overall Length (mm) | 150.00 |
| Insert Diameter (mm) | 8.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Shank Length (mm) | 99.00 |
| Maximum RPM | 40000 |
