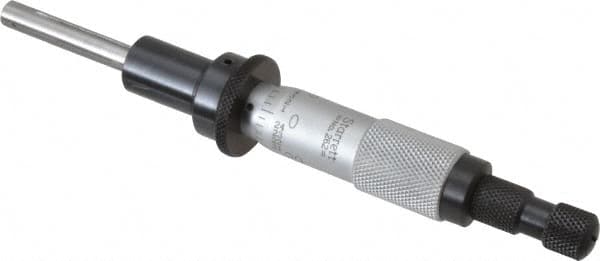

Starrett - 1 Inch, 5/8 Inch Ratchet Stop Thimble, 0.235 Inch Diameter x 1-1/4 Inch Long Spindle, Mechanical Micrometer Head
Item #: 00188557
Brand: Starrett
Model #: 55946
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Inch) | 1 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Thimble Diameter (mm) | 15.88 |
| Thimble Diameter (Inch) | 5/8 |
| Digital Counter | No |
| Spindle Diameter (mm) | 5.97 |
| Spindle Diameter (Decimal Inch) | 0.2350 |
| Spindle Length (mm) | 31.75 |
| Spindle Length (Inch) | 1-1/4 |
| Overall Length (mm) | 139.70 |
| Overall Length (Inch) | 5-1/2 |
| Graduation (Decimal Inch) | 0.0010 |
| Stem Diameter (Decimal Inch) | 0.4999 |
| Stem Diameter (mm) | 12.70 |
| Spindle Type | Flat |
| Rotating Spindle | No |
| Accuracy (Decimal Inch) | 0.000100 |
| Thimble Type | Ratchet Stop |
| Stem Length (mm) | 19.05 |
| Stem Length (Inch) | 3/4 |
| Reverse Reading | No |
| Clamp Nut Supplied | Yes |
| Measuring Face Material | Steel |
| Finish/Coating | Satin Chrome |
| Number of Extension Rods | 0 |
