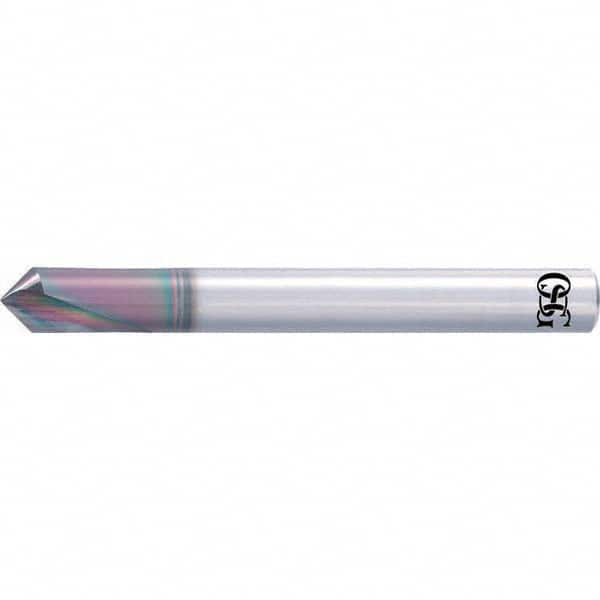

OSG - Spotting Drills Body Diameter (Inch): 5/8 Body Diameter (Decimal Inch): 0.6250 - Exact Tooling

OSG - Spotting Drills Body Diameter (Inch): 5/8 Body Diameter (Decimal Inch): 0.6250


Item #: 18074856
Brand: OSG
Model #: 519016217

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Product Specifications

Spotting Drills; Body Diameter (Inch): 5/8 ; Body Diameter (Decimal Inch): 0.6250 ; Drill Point Angle: 90 ; Spotting Drill Material: Solid Carbide ; Spotting Drill Finish/Coating: EgiAs ; Overall Length (mm): 118.00
Body Diameter (Inch) 5/8
Body Diameter (Decimal Inch) 0.6250
Drill Point Angle 90
Spotting Drill Material Solid Carbide
Spotting Drill Finish/Coating EgiAs
Overall Length (mm) 118.00
Flute Length (mm) 41.00
Shank Diameter (Inch) 5/8
Number of Flutes 2
Cutting Direction Right Hand
Series/List 5190
