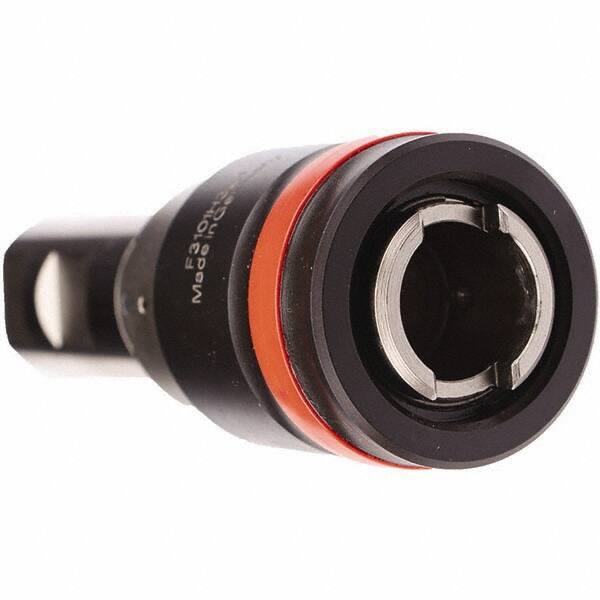

Emuge - 1-1/4" Straight Shank Diam Tension & Compression Tapping Chuck - M3 Min Tap Capacity, 2.4409" Projection, Size 1 Adapter, Quick Change, Through Coolant
Item #: 87027116
Brand: Emuge
Model #: F3101H38.1
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Minimum Tap Capacity (mm) | M3 |
| Projection (Decimal Inch) | 2.4409 |
| Quick Change | Yes |
| Adapter Size | 1 |
| Holder Series | KSN1/HD |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Compression (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 4.7244 |
| Through Coolant | Yes |
