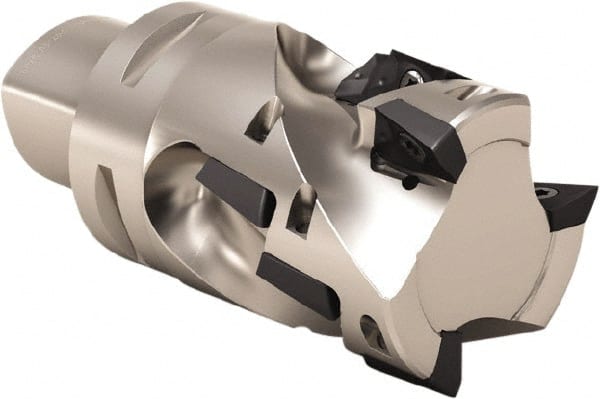

Seco - 2-1/2" Cut Diam, 2.41" Max Depth of Cut, Indexable Square Shoulder End Mill - XO.. 1806 Inserts, C6 Modular Connection, 90° Lead Angle, Series Super Turbo
Item #: 87093316
Brand: Seco
Model #: 62440
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2-1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 2.4100 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Insert Compatibility | XO.. 1806 |
| Maximum RPM | 8400 |
