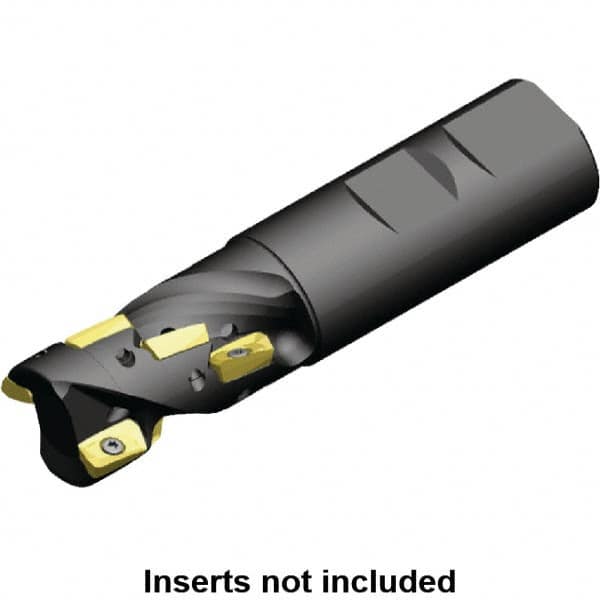

Kennametal - 25mm Cut Diam, 36.38mm Max Depth of Cut, 25mm Shank Diam, 103mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 10T3.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 87093530
Brand: Kennametal
Model #: 3773119
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 103.00 |
| Overall Length/Projection (Decimal Inch) | 4.0550 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 36.38 |
| Maximum Depth of Cut (Decimal Inch) | 1.4323 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Weldon Flat | Yes |
| Insert Compatibility | ED.T 10T3.. |
| Shank Length (Decimal Inch) | 2.2441 |
| Shank Length (mm) | 57.00 |
| Maximum RPM | 33200 |
| Coolant Hole Diameter (mm) | 7.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2756 |
