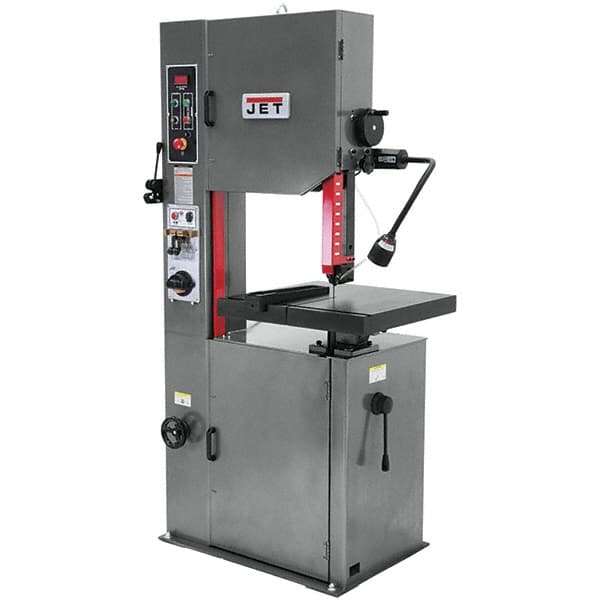

Jet - 14 Inch Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 82 to 330 SFPM, 1 HP, Single Phase
Item #: 87148615
Brand: Jet
Model #: 414483
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (Inch) | 14 |
| Height Capacity (Inch) | 8 |
| Phase | 1 |
| Blade Width (Inch) | 1/8 to 1/2 |
| Blade Speeds (SFPM) | 82 to 330 (Low); 985 to 3950 (High) |
| Blade Length (Inch) | 114 |
| Blade Guide Type | Adjustable Tungsten Carbide |
| Table Length (Inch) | 20 |
| Table Width (Inch) | 20 |
| Floor to Table Height (Inch) | 39 |
| Table Tilt Right (Degrees) | 15.00 |
| Horsepower (HP) | 1.00 |
| Voltage | 115/230 |
| Overall Height (Inch) | 68-1/2 |
