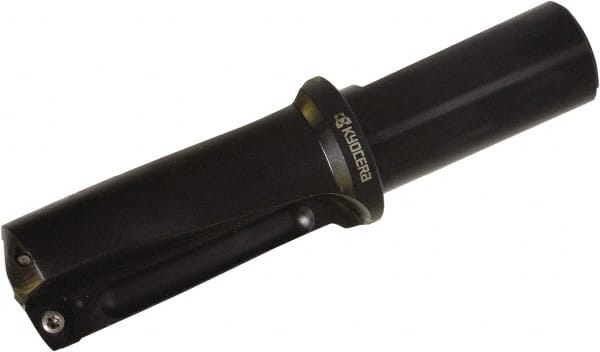

Kyocera - 1-3/4" Max Drill Depth, 2xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Whistle Notch Shank
Item #: 87182168
Brand: Kyocera
Model #: 8600776
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 1-3/4 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (Decimal Inch) | 0.1250 |
| Number of Drill Inserts | 2 |
| Insert Compatibility | WCMX 050308-M1A |
| Body Length (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Series | Holeshot |
