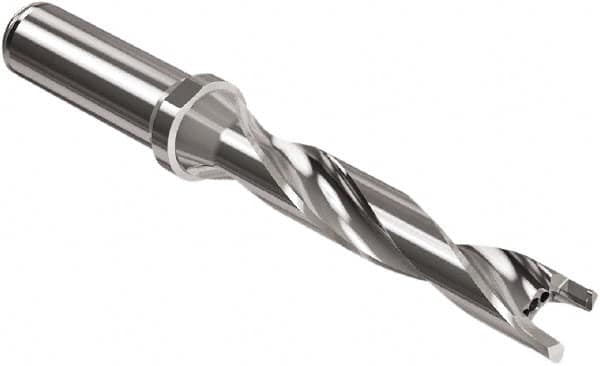

Seco - Crownloc Plus Series, 18 Head Connection, 5xD, 3/4" Shank Diam, Drill Body - 125.3mm Body to Flange Length, SD405 Toolholder, 18mm Nose Diam, 107.3mm Flute Length
Item #: 87270690
Brand: Seco
Model #: 40135
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Head Connection Size | 18 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Taper Size | None |
| Shank Diameter (Inch) | 3/4 |
| Drill Body Length to Flange (mm) | 125.30 |
| Toolholder Style | SD405 |
| Nose Diameter (mm) | 18.00 |
| Overall Length (mm) | 175.30 |
| Flute Length (mm) | 107.30 |
| Shank Type | Weldon |
| Shank Length (mm) | 50.00 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
