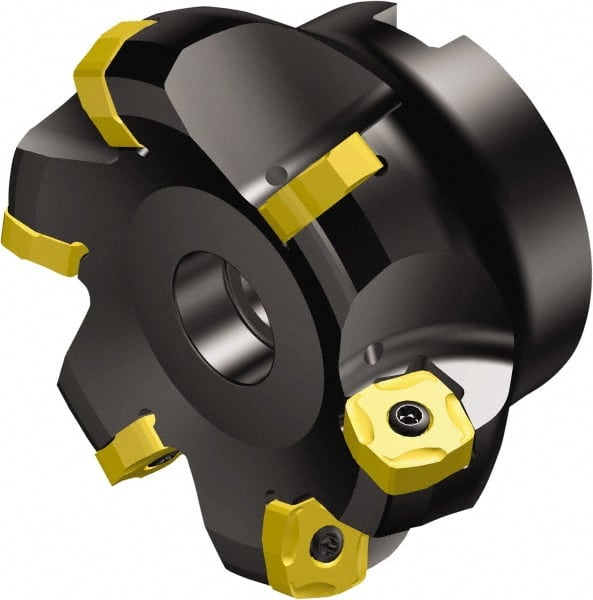

Sandvik Coromant - 3" Cut Diam, 1" Arbor Hole, 0.2362" Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 6 Inserts, R365-1505ZNE Insert, Right Hand Cut, Through Coolant, Series CoroMill 365
Item #: 87288395
Brand: Sandvik Coromant
Model #: 5740291
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 6 |
| Cutter Style | R/LA365..Rxx-S |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum RPM | 11900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
