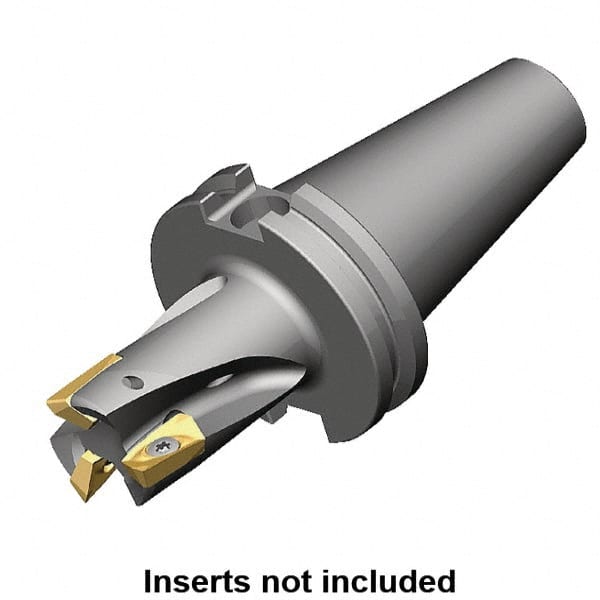

Kennametal - 1-1/2" Cut Diam, 18.03mm Max Depth of Cut, 192.07mm OAL, Indexable Square Shoulder Helical End Mill - E.. 18.. Inserts, CAT 40 Taper Shank, 0° Lead Angle, Through Coolant, Series Mill 1-18
Item #: 87306015
Brand: Kennametal
Model #: 2541972
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | CAT 40 |
| Overall Length/Projection (mm) | 192.07 |
| Overall Length/Projection (Decimal Inch) | 7.5620 |
| Lead Angle | 0 |
| Series | Mill 1-18 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 76.20 |
| Head Length (Decimal Inch) | 3.0000 |
| Insert Compatibility | E.. 18.. |
| Shank Length (Decimal Inch) | 2.8120 |
| Shank Length (mm) | 71.43 |
| Maximum RPM | 29020 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
