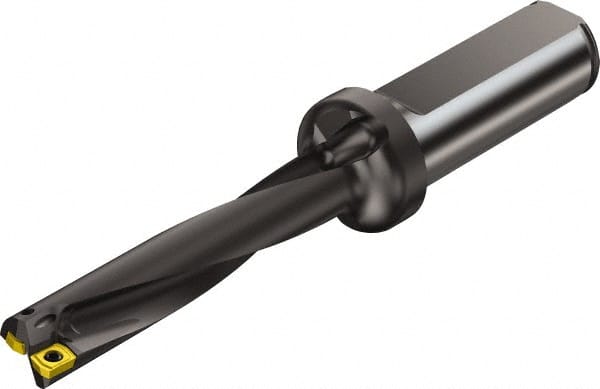

Sandvik Coromant - 146.304mm Max Drill Depth, 5xD, 1-1/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 87479739
Brand: Sandvik Coromant
Model #: 5723806
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (mm) | 28.58 |
| Drill Diameter (Inch) | 1-1/8 |
| Drill Diameter (Decimal Inch) | 1.1250 |
| Maximum Drill Depth (mm) | 146.30 |
| Maximum Drill Depth (Decimal Inch) | 5.7600 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3 |
| Insert Size (Decimal Inch) | 0.1181 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1644 |
| Maximum Drill Diameter (mm) | 28.58 |
| Overall Length/Projection (mm) | 228.07 |
| Overall Length/Projection (Decimal Inch) | 8.9792 |
| Insert Compatibility (Outside or Peripheral) | 05P |
| Flute Length (mm) | 163.05 |
| Flute Length (Decimal Inch) | 6.4193 |
| Body Length (Decimal Inch) | 5.7600 |
| Body Length (mm) | 146.30 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Radius (Decimal Inch) | 0.5625 |
| Series | CoroDrill 880 |
