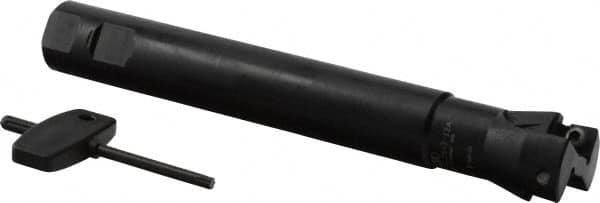

Seco - 1-1/4" Cut Diam, 0.43" Max Depth of Cut, 1" Shank Diam, Indexable Plunge End Mill - Weldon Shank, SCET 1206 Insert Style, R217.79-12A Toolholder Style, Through Coolant
Item #: 87712733
Brand: Seco
Model #: 57587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0 |
| Number of Cutter Inserts | 2 |
| Insert Style | SCET 1206 |
| Toolholder Style | R217.79-12A |
| Number of Flutes | 2 |
| Overall Length/Projection (Decimal Inch) | 7.9000 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 5.9000 |
| Weldon Flat | Yes |
| Through Coolant | Through Coolant |
| Maximum RPM | 12100 |
| ISO Number | R217.79-01.25-3-12A |
| End Mill Type | End Mill |
