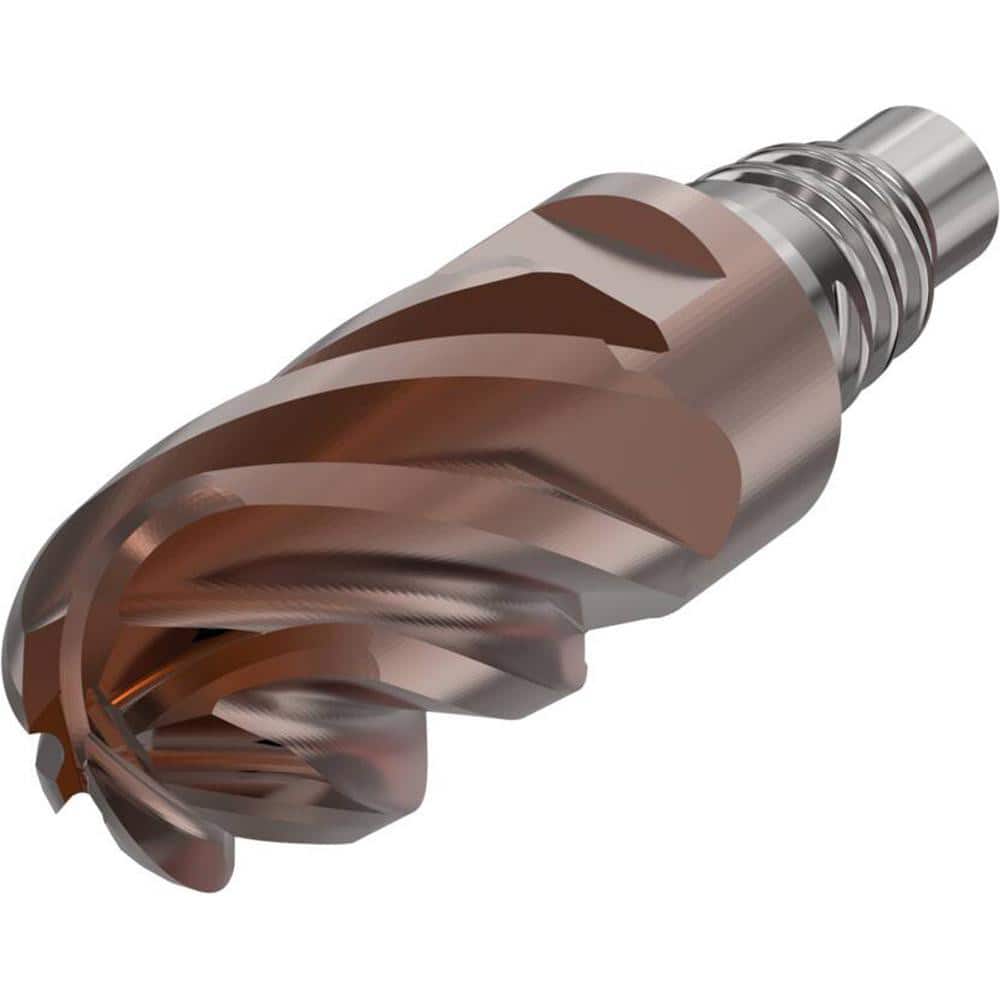

Ball End Mill Heads; Mill Diameter (Inch): 3/8; Mill Diameter (Decimal Inch): 0.3750; Number of Flutes: 6; Length of Cut (Inch): 3/8; Connection Type: E10; Overall Length (Decimal Inch): 1.2680; Material: Solid Carbide; Finish/Coating: HXT; Cutting Direct
Item #: 87755336
Brand: Seco
Model #: 10138226
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 6 |
| Length of Cut (Inch) | 3/8 |
| Connection Type | E10 |
| Overall Length (Decimal Inch) | 1.2680 |
| Material | Solid Carbide |
| Finish/Coating | HXT |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Angle | 38 |
| Helix Style | Medium |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Nose Radius (Decimal Inch) | 0.1875 |
| Series/List | XSB720 |
| Undercutting | No |
