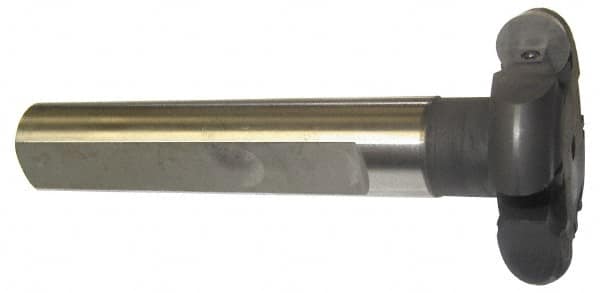

Cutting Tool Technologies - Shank Connection, 3/8" Cutting Width, 1/2" Depth of Cut, 2" Cutter Diam, Indexable Slotting Cutter - 1" Shank Diam, RT Toolholder, RDC-3(2.5) Insert
Item #: 87782033
Brand: Cutting Tool Technologies
Model #: RT-170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Cutter Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Inch) | 2 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | RT |
| Series | RT |
| Insert Style | RDC-3(2.5) |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Wedge |
| Radius | Yes |
| Cutting Radius (Inch) | 3/16 |
| Rake | Positive |
| Weldon Flat | Yes |
