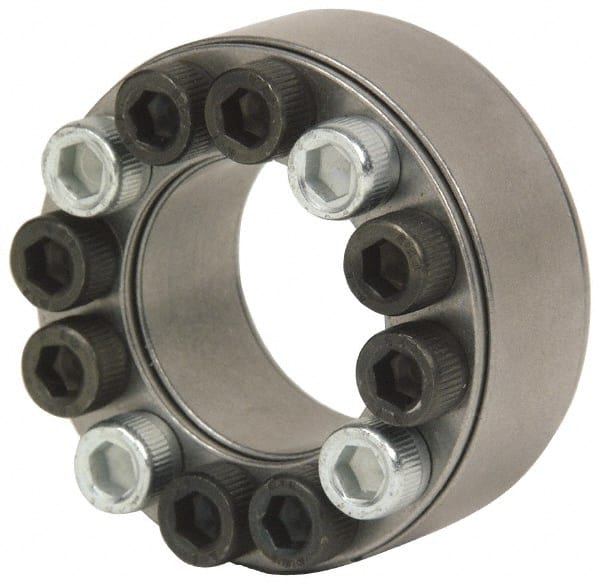

Climax Metal Products - M6 Thread, 1-3/16" Bore Diam, 2.159" OD, Shaft Locking Device - 10 Screws, 8,919 Lb Axial Load, 2.159" OAW, 0.669" Thrust Ring Width, 441 Ft/Lb Max Torque
Item #: 87793030
Brand: Climax Metal Products
Model #: C200E-118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Decimal Inch) | 1.1880 |
| Outside Diameter (Decimal Inch) | 2.1590 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.1590 |
| Axial Load Lbs (Pounds) | 8919 |
| Maximum Torque (Ft/Lb) | 441 |
| Number of Screws | 10.000 |
| Contact Pressure on Hub (psi) | 16372.000 |
| Contact Pressure on Shaft (psi) | 29766.000 |
| Screw Seating Torque (In/Lb) | 120.000 |
