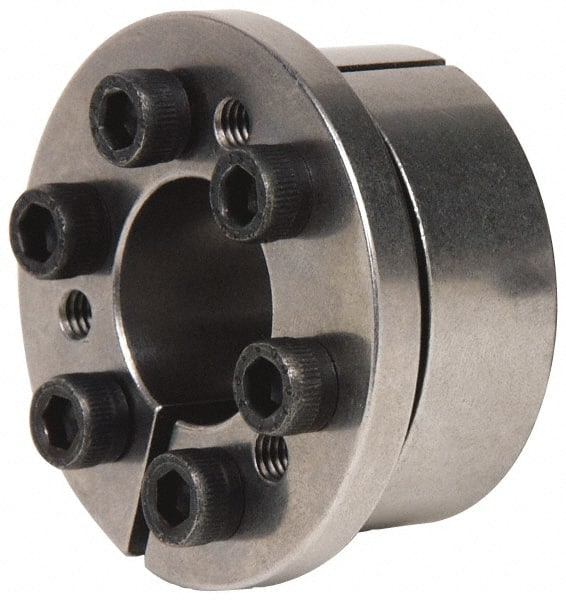

Climax Metal Products - M6 Thread, 1-1/8" Bore Diam, 2.165" OD, Shaft Locking Device - 6 Screws, 7,518 Lb Axial Load, 2.421" OAW, 0.669" Thrust Ring Width, 352 Ft/Lb Max Torque
Item #: 87793360
Brand: Climax Metal Products
Model #: C133E-112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Decimal Inch) | 1.1250 |
| Outside Diameter (Decimal Inch) | 2.1650 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.4210 |
| Axial Load Lbs (Pounds) | 7518 |
| Maximum Torque (Ft/Lb) | 352 |
| Number of Screws | 6.000 |
| Contact Pressure on Hub (psi) | 13760.000 |
| Contact Pressure on Shaft (psi) | 26485.000 |
| Screw Seating Torque (In/Lb) | 156.000 |
