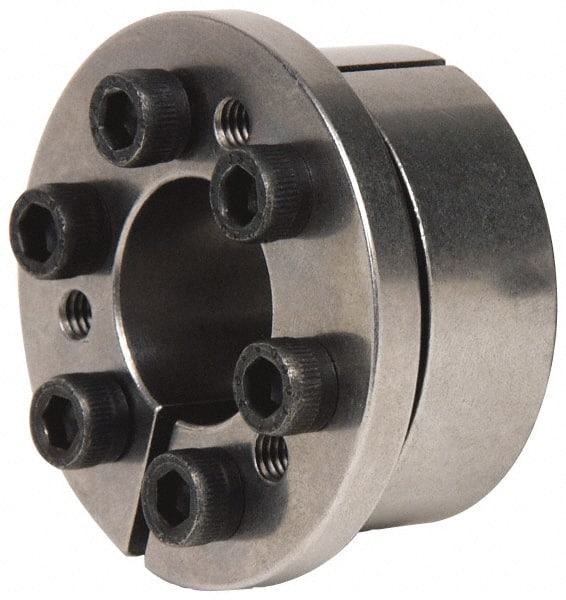

Climax Metal Products - M8 Thread, 2-3/8" Bore Diam, 3.543" OD, Shaft Locking Device - 8 Screws, 18,521 Lb Axial Load, 3.858" OAW, 0.787" Thrust Ring Width, 1,833 Ft/Lb Max Torque
Item #: 87793501
Brand: Climax Metal Products
Model #: C133E-237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Decimal Inch) | 2.3750 |
| Outside Diameter (Decimal Inch) | 3.5430 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.8580 |
| Axial Load Lbs (Pounds) | 18521 |
| Maximum Torque (Ft/Lb) | 1833 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 17608.000 |
| Contact Pressure on Shaft (psi) | 26270.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
