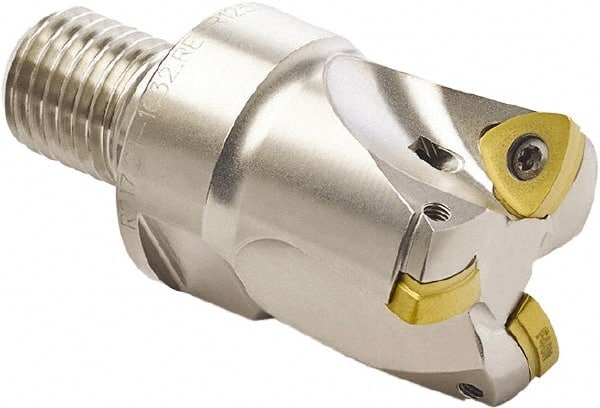

Seco - 35mm Cut Diam, 0.039" Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, 218.19-125 Insert, R217.21 Toolholder, Through Coolant
Item #: 87827291
Brand: Seco
Model #: 03298
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Cutting Diameter (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | 218.19-125 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.9450 |
| Maximum RPM | 18800 |
| Through Coolant | Through Coolant |
