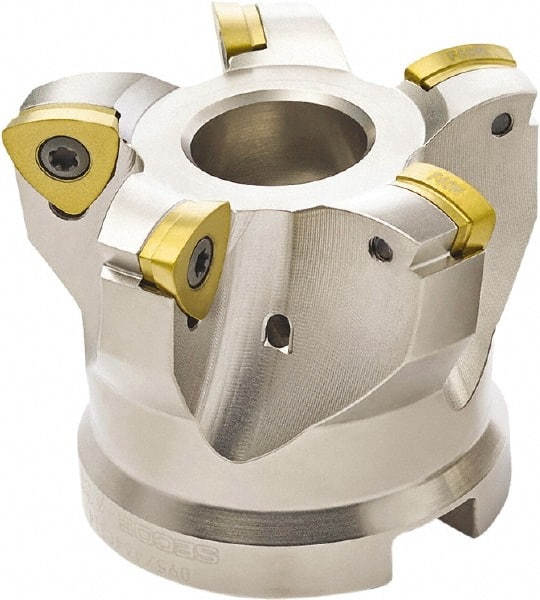

Seco - 4 Inserts, 1.6535" Cutter Diam, 0.0394" Max Depth of Cut, Indexable High-Feed Face Mill - 0.6299" Arbor Hole Diam, 0.3307" Keyway Width, 1.5748" High, 218.19-125.. Inserts
Item #: 87827317
Brand: Seco
Model #: 03301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | 218.19-125.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17200 |
| Maximum Body Diameter (Decimal Inch) | 1.2205 |
| Through Coolant | Yes |
| Complete Insert Compatibility | 218.19-125-T3-E06 |
| Keyway Width (Decimal Inch) | 0.3307 |
