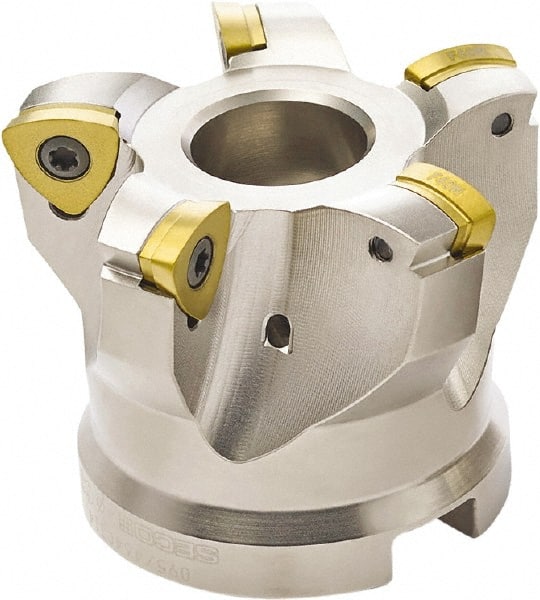

Seco - 4 Inserts, 1.9685" Cutter Diam, 0.0709" Max Depth of Cut, Indexable High-Feed Face Mill - 0.8661" Arbor Hole Diam, 0.4094" Keyway Width, 1.5748" High, 218.19-160.. Inserts
Item #: 87827333
Brand: Seco
Model #: 03303
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | 218.19-160.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12900 |
| Maximum Body Diameter (Decimal Inch) | 1.4173 |
| Through Coolant | Yes |
| Complete Insert Compatibility | 218.19-160-04-E07 |
| Keyway Width (Decimal Inch) | 0.4094 |
