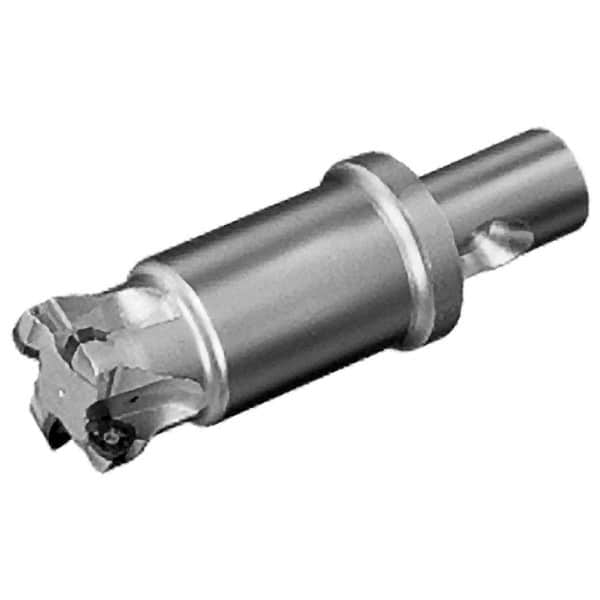

Iscar - 1-1/2" Cut Diam, 0.06" Max Depth, CF4 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, FF WOMT Insert, FF EW-CF Toolholder, Through Coolant
Item #: 87837951
Brand: Iscar
Model #: 3103618
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Shank Type | Modular Connection |
| Modular Connection Size | CF4 |
| Number of Cutter Inserts | 4 |
| Insert Style | FF WOMT |
| Toolholder Style | FF EW-CF |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9500 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 7.1300 |
| Manufacturers Catalog Number | FF EW D1.50-5.0-CF4-06-C |
